Quincy Air Compressor 5 HP 80 Gallon Two Stage

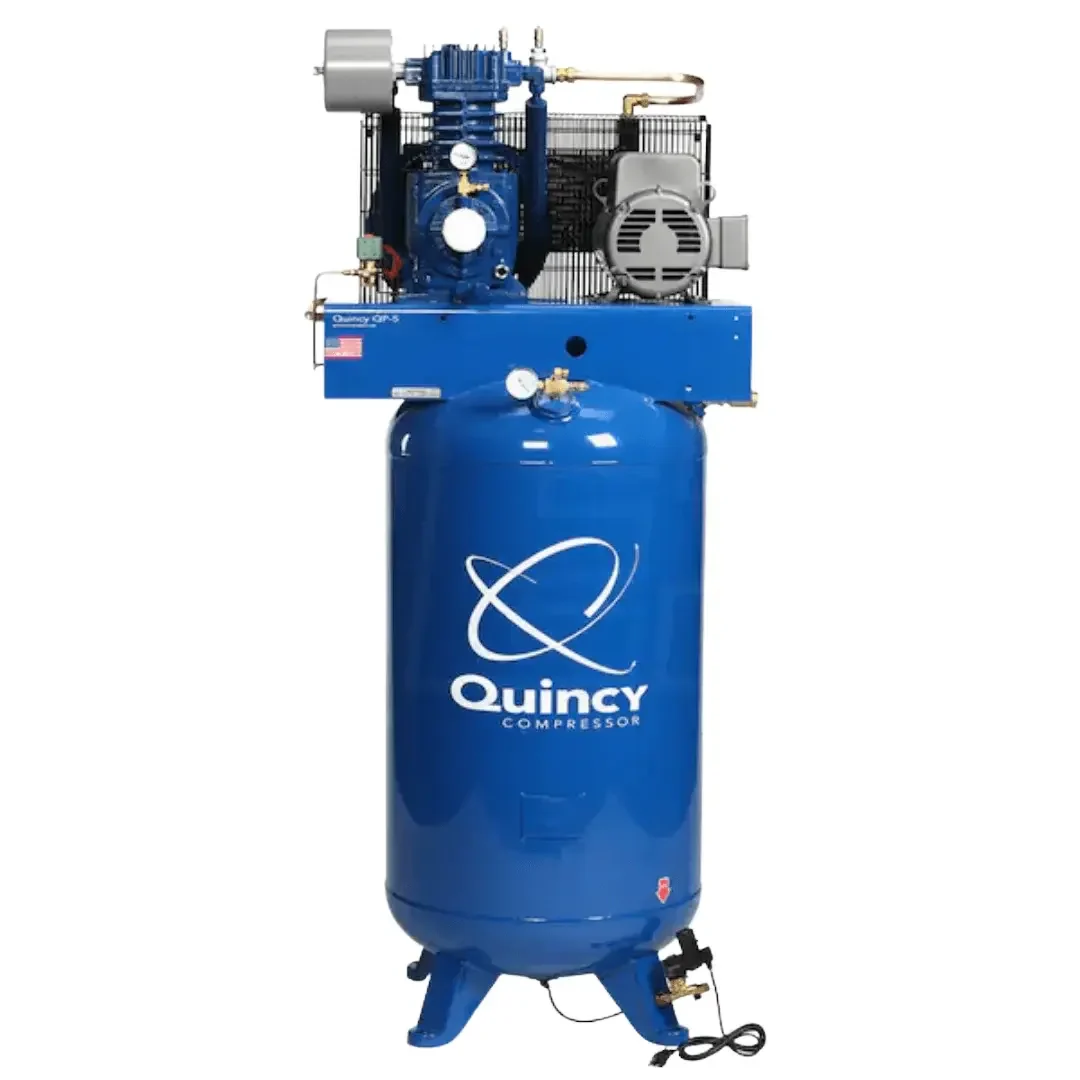

Quincy 553D80VCA46M QP MAX 5-HP 80-Gallon Pressure Lubricated Two-Stage Air Compressor (460V 3-Phase)

The Quincy 553D80VCA46M QP MAX air compressor is engineered to handle demanding shop environments that require a steady and reliable air supply. Its fully pressure-lubricated two-stage system utilizes a gerotor positive displacement oil pump to ensure vital parts remain well-lubricated, reducing internal friction and significantly extending pump life beyond 60,000 hours. The powerful 5-HP motor runs at 942 RPM, delivering strong performance while maintaining cooler operation for greater efficiency.

Key features include an electronic automatic tank drain to control moisture build-up, a mounted air-cooled aftercooler to maintain optimal temperatures, and a magnetic starter that provides thermal overload protection. This compressor also integrates a heavy-duty cast iron pump with aluminum heads for durability and heat dissipation, stainless steel reed valves for maximum airflow efficiency, and graphite cylinder and head gaskets for superior sealing. Its spin-on oil filter ensures simplified maintenance, while the high-efficiency finned tube intercooler reduces interstage temperatures to maximize output and prolong component life.

For warranty information please see the below link.

Product Features

• Fully Pressure Lubricated QP Pro Max Package 2-Stage Compressor
• Heavy-Duty Cast Iron 2-Stage Pump With Aluminum Heads
• Spin-On Oil filter
• Gerator Positive Displacement Oil Pump
• Stainless Steel Reed Valves With Valve Bumpers
• Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
• 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
