Quincy Air Compressor 5 HP 80 Gallon Two Stage

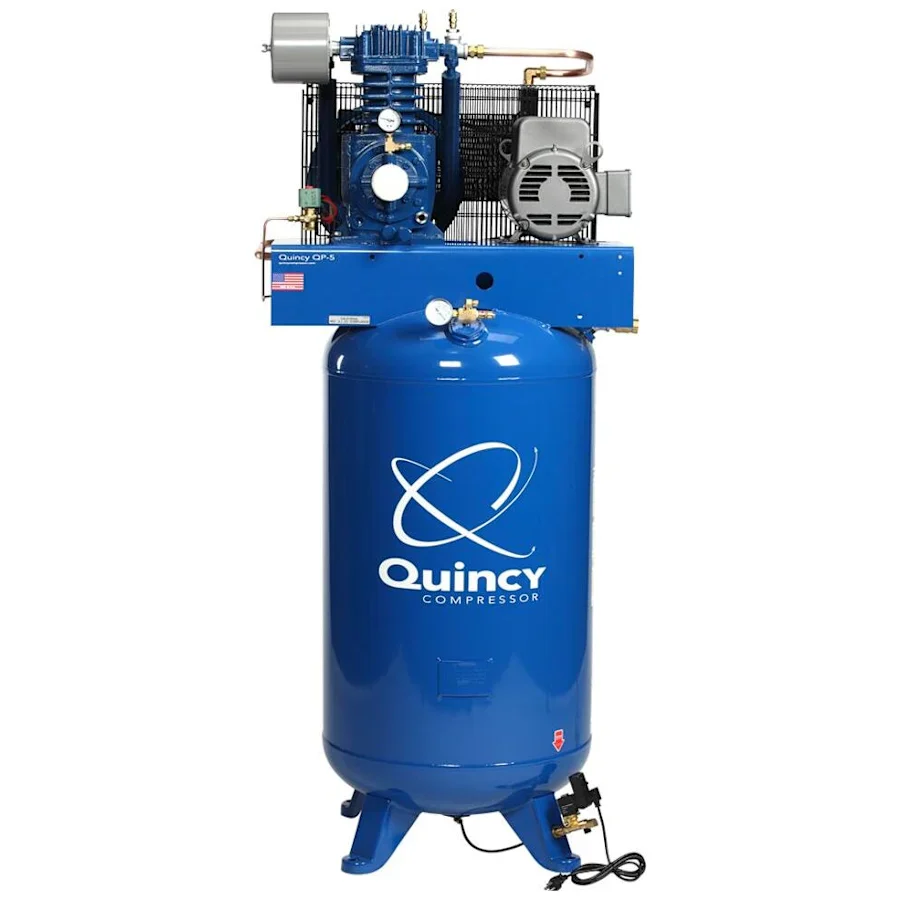

Quincy 553D80VCA23M QP MAX 5-HP 80-Gallon Pressure Lubricated Two-Stage Air Compressor (230V 3-Phase)

The Quincy 553D80VCA23M QP MAX is built for operations demanding constant, reliable compressed air. Its fully pressure-lubricated design with a gerotor positive displacement oil pump ensures every moving part receives consistent lubrication, minimizing internal wear and extending the pump’s life expectancy beyond 60,000 hours. The robust 5-HP industrial motor operates at 942 RPM to support continuous workloads without compromising efficiency.

This compressor comes equipped with an electronic automatic tank drain to manage moisture build-up and a mounted air-cooled aftercooler to keep operating temperatures low, enhancing the lifespan of critical components. Its durable cast iron two-stage pump paired with aluminum heads delivers strength and improved heat dissipation, while stainless steel reed valves with valve bumpers ensure optimal volumetric efficiency. Additional features include a magnetic starter with thermal overload protection, graphite cylinder and head gaskets for tight sealing, a spin-on oil filter for simplified maintenance, and a high-efficiency finned tube intercooler to reduce interstage temperatures for maximum output and durability.

For warranty information please see the below link.

Product Features

• Fully Pressure Lubricated QP Pro Max Package 2-Stage Compressor
• Heavy-Duty Cast Iron 2-Stage Pump With Aluminum Heads
• Spin-On Oil filter
• Gerator Positive Displacement Oil Pump
• Stainless Steel Reed Valves With Valve Bumpers
• Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
• 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
