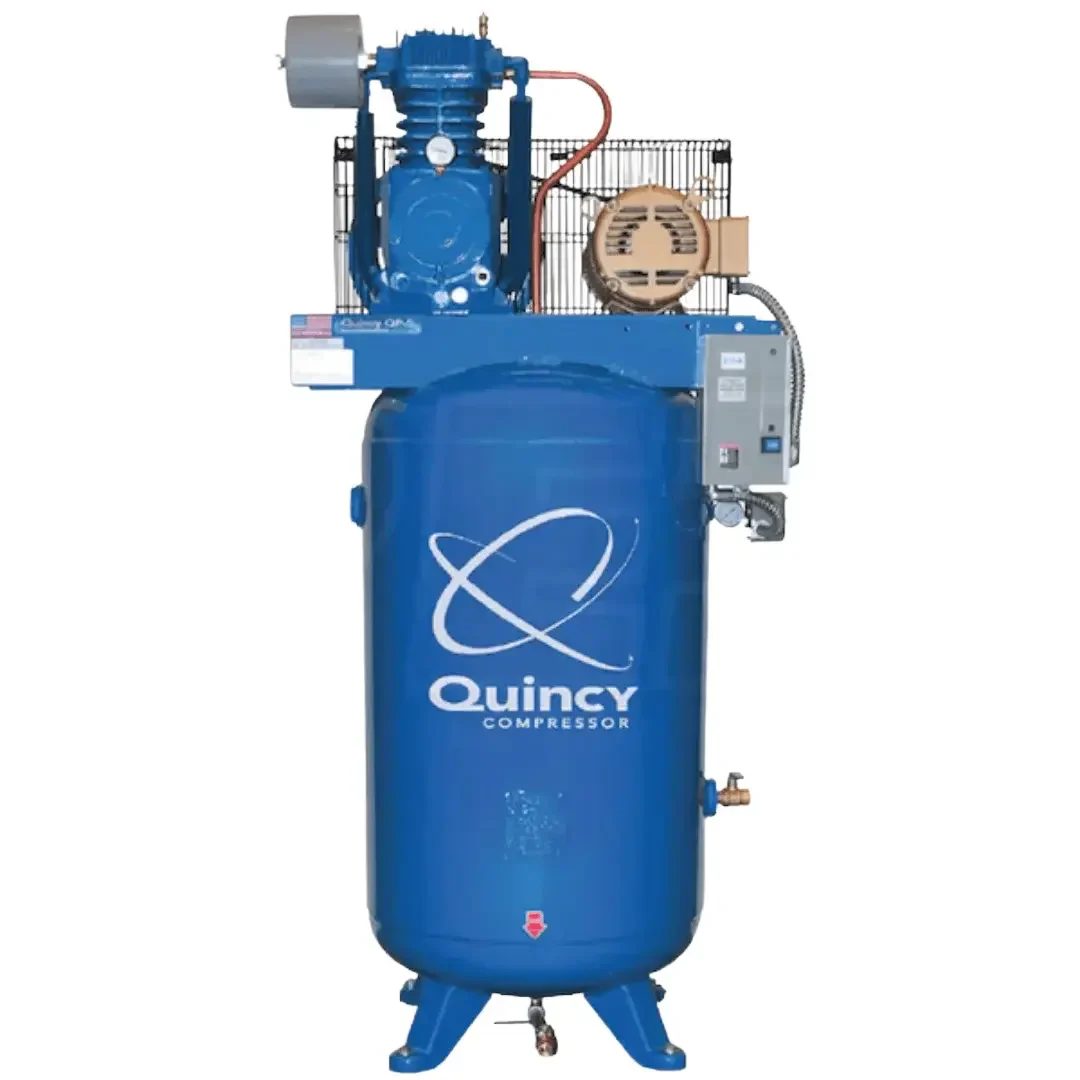

Quincy Air Compressor 5103D12VCA46M QT Max 10 HP 120 Gallon

Quincy 5103D12VCA46M QP MAX 10-HP 120-Gallon Pressure Lubricated Two-Stage Air Compressor (460V 3-Phase)

Designed for high-demand industrial environments, the Quincy QP MAX 5103D12VCA46M offers robust performance with its 10 HP motor and 120-gallon vertical tank. This compressor is engineered to deliver continuous, high-volume air output, making it suitable for applications that require sustained operation.

The unit features a fully pressure-lubricated two-stage pump, constructed from heavy-duty cast iron with aluminum heads. This design ensures efficient heat dissipation and long-term durability. The pump operates at 1,750 RPM, balancing performance with reduced wear and noise levels.

Equipped with an air-cooled aftercooler, the compressor maintains optimal operating temperatures, extending the life of internal components. The electronic automatic tank drain minimizes maintenance by effectively managing condensation, while the low-oil shutdown system protects the motor from potential damage.

With a 100% duty cycle rating, the Quincy 5103D12VCA46M is built to handle the demanding needs of automotive shops, manufacturing facilities, and other industrial applications requiring reliable compressed air.

Product Features

• Fully Pressure Lubricated QP Max Package 2-Stage Compressor
• Heavy-Duty Cast Iron 2-Stage Pump With Aluminum Heads
• Spin-On Oil filter
• Gerator Positive Displacement Oil Pump
• Stainless Steel Reed Valves With Valve Bumpers
• Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
• 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
