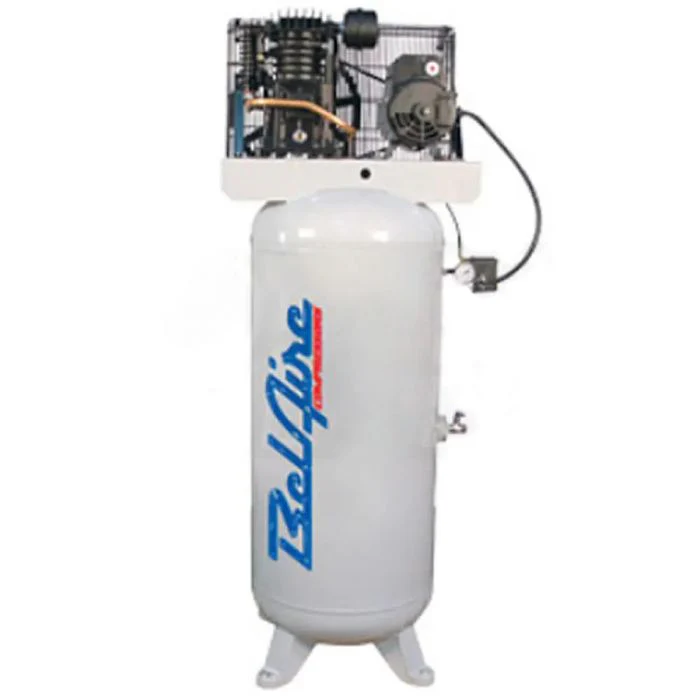

BelAire Air Compressor 338VL4 7.5 HP 80 Gallon Two Stage 460V 3 Phase

BelAire 338VL4 7.5-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase)

The BelAire 338VL4 is a high-performance two-stage air compressor designed for demanding industrial and commercial applications. It features a 7.5-horsepower motor operating on 460-volt Three Phase power, delivering 25.25 cubic feet per minute (CFM) at 100 PSI and 22.3 CFM at 175 PSI, with a maximum pressure rating of 175 PSI. This performance ensures a steady and reliable supply of compressed air for powering multiple pneumatic tools and equipment.

The compressor is equipped with a durable belt-driven two-stage pump constructed with solid cast iron cylinders and aluminum heads, providing efficient heat dissipation and long service life. An integrated aftercooler helps reduce discharge air temperature, enhancing performance and extending component longevity.

Product Features

• Solid Cast Iron Cylinder 2 Stage Pump
• Delivers 18.5 CFM at 100 PSI
• Rugged components provide long-lasting dependability
• Start / Stop Pressure Switch Controls
• Save time & energy
• ASME Tank & Safety Valve
• 80 gallon air reserve for big jobs or multiple users
• 3/4" air outlet; 175 PSI maximum pressure
• 2 Year Bumper To Bumper Factory Warranty
• No additional purchase necessary
• Fully Enclosed High-Flow Belt Guard
• Protects the belt & the operator
• Manual Air Tank Drain
• Makes tank maintenance simple
• 460 Volt Three Phase Power
• Easily wires into your 460V-3 system
• CPXHT25 dryer recommended (not included)
