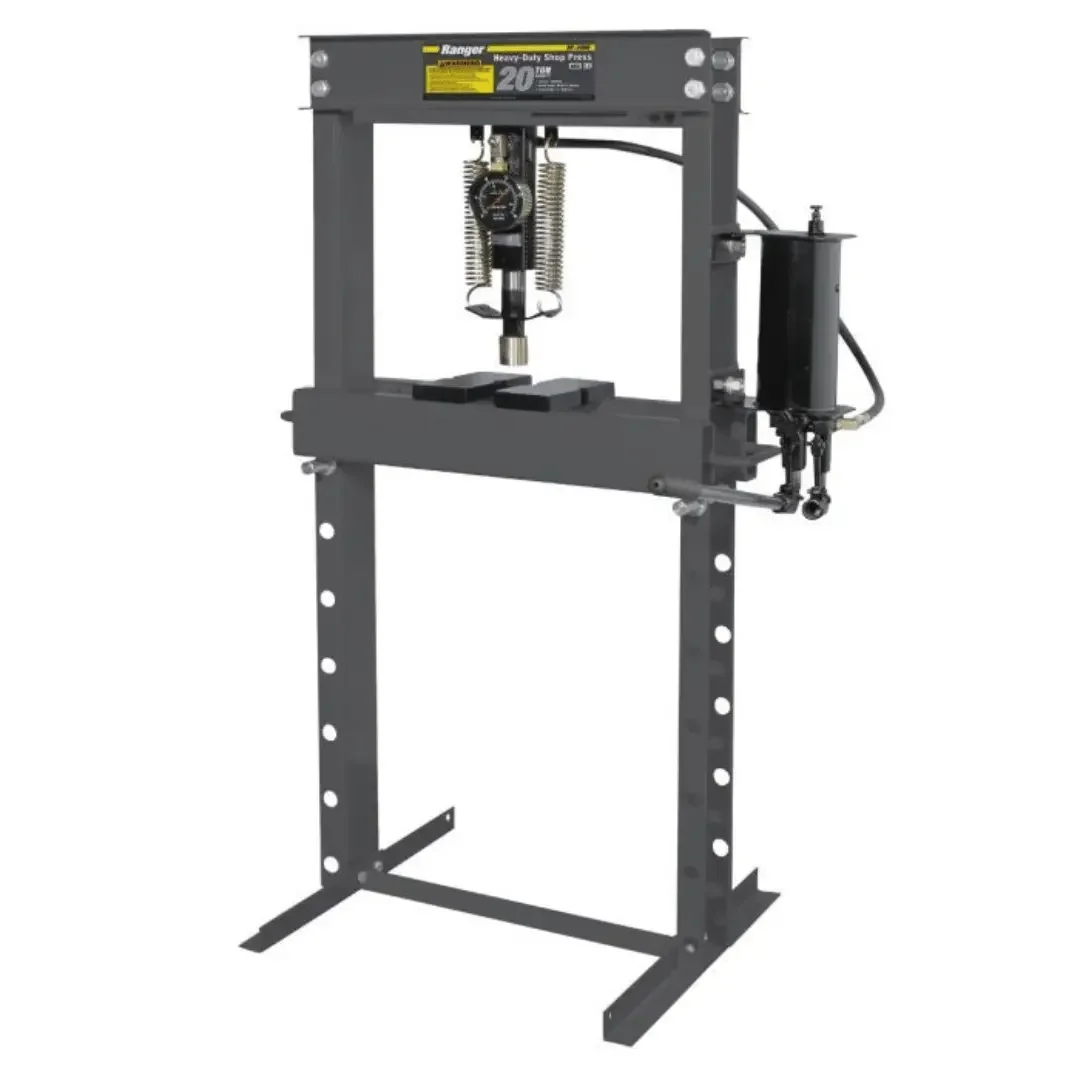

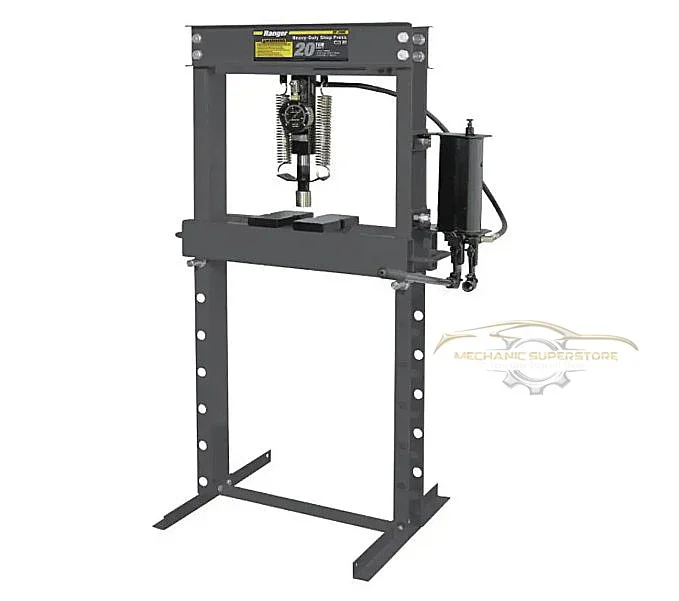

Ranger RP-20HD 20 Ton Shop Press / Two-Stage Hydraulic Pump / Commercial-Grade

The Ranger RP‑20HD 20 Ton Shop Press is built to deliver powerful and reliable performance for both professional mechanics and serious DIY users. Engineered with a two‑stage hydraulic pump, this shop press delivers up to 40,000 lbs. of force, making it ideal for demanding tasks such as bearing removal, bushing installation, gear pressing, and other heavy‑duty mechanical operations. Its combination of strength, versatility, and precision makes it an essential tool for any workshop.

The two‑stage hydraulic pump is a defining feature of the RP‑20HD, enabling both rapid advance and controlled pressing. This dual‑speed operation allows the operator to position the workpiece quickly and then apply precise pressure, making the press suitable for both delicate and heavy applications. This level of control ensures that jobs are completed efficiently while maintaining the integrity of the components being worked on.

A lateral‑moving hydraulic cylinder expands the press’s flexibility, allowing the cylinder to be repositioned for optimal access to the workpiece. This design is especially useful when dealing with components that require angled pressing or when the workpiece geometry demands precision alignment. The lateral movement enhances the press’s usability in complex repair and fabrication projects.

The RP‑20HD features a built‑in 4‑inch diameter pressure gauge capable of reading up to 20 tons. This gauge enables the operator to monitor pressure in real time, ensuring accuracy and preventing over‑pressing. The gauge’s clear display simplifies operation and increases confidence in achieving precise results.

Durability is a central aspect of the RP‑20HD’s design. Its heavy‑duty steel frame is engineered to withstand intense use without warping or losing stability. The press frame supports a table with adjustable height ranging from 7.5" to 36.25", providing adaptability for a wide range of tasks and sizes of workpieces. Two heavy‑duty press plates are included, further expanding the press’s versatility for different jobs.

With dimensions of 61" in length, 37" in width, and 60.25" in height, the RP‑20HD provides a solid working platform while fitting comfortably into most garage and shop environments. Its weight of 274 lbs. reflects the robust construction while still allowing for manageable handling during setup. The sturdy design delivers consistent performance while maintaining safety and precision.

Operators will appreciate the combination of strength, precision, and convenience built into the RP‑20HD. The two‑stage pump reduces cycle time, the lateral cylinder enhances flexibility, and the integrated pressure gauge provides confidence in the quality of pressing operations. These features combine to make the press a highly productive addition to any workspace.

Using the Ranger RP‑20HD enhances workshop efficiency and expands the range of tasks that can be performed in‑house, reducing the need for outsourcing. From automotive repair shops to fabrication facilities, this press offers reliable service under heavy use conditions. Its robust construction, adjustable table, and precise control systems ensure it can handle a variety of pressing tasks with accuracy and safety.

Contact us for more information on 10 and 20 ton shop presses.

Product Specifications

Capacity	40,000 lbs. (18,144 kg)
Overall Height	60.25" (1,530 mm)
Overall Width	37" (940 mm)
Inside Width Between Rails	24" (610 mm)
Adjustable Table Height	7.5" - 36.25" (190 mm - 921 mm)
Base Dimensions	27.25" x 26" (692 mm x 660 mm)
Cylinder Stroke	5.5" (140 mm)
Shipping Weight	274 lbs. (124 kg)
Shipping Dimensions	61" x 13" x 15" (1,754 mm x 330 mm x 381 mm)

Pick Up and Delivery

Our Pick Up locations for Ranger are located in Santa Paula, California & Theodore, Alabama.

Call, text, or chat with us if you have questions. 866-774-7743

20 Ton Shop Presses | Heavy-Duty Hydraulic Presses for Auto Shops

Ranger RP-20HD 20 Ton Shop Press / Two-Stage Hydraulic Pump / Commercial-Grade

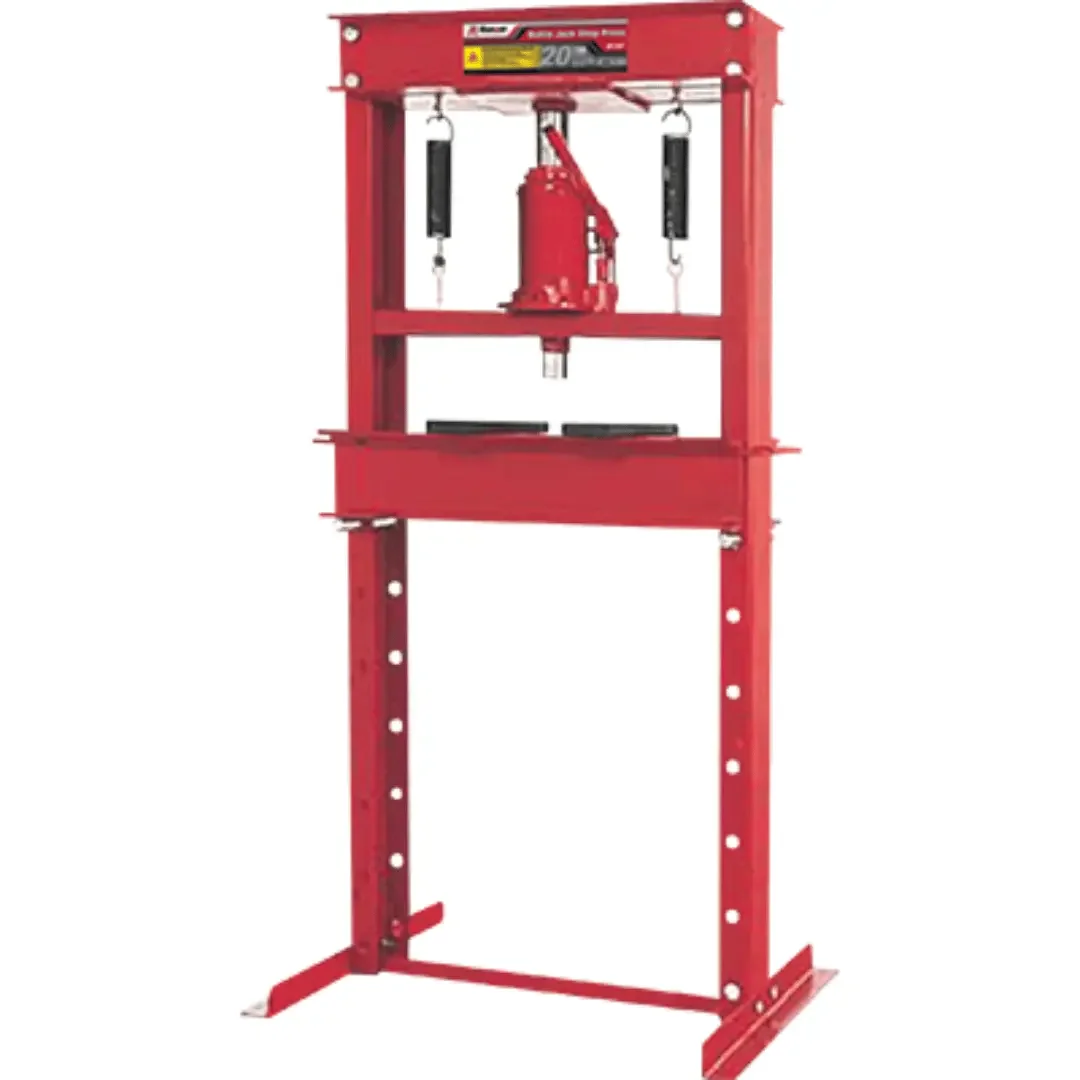

Ranger RP-20T 20-Ton Shop Press
