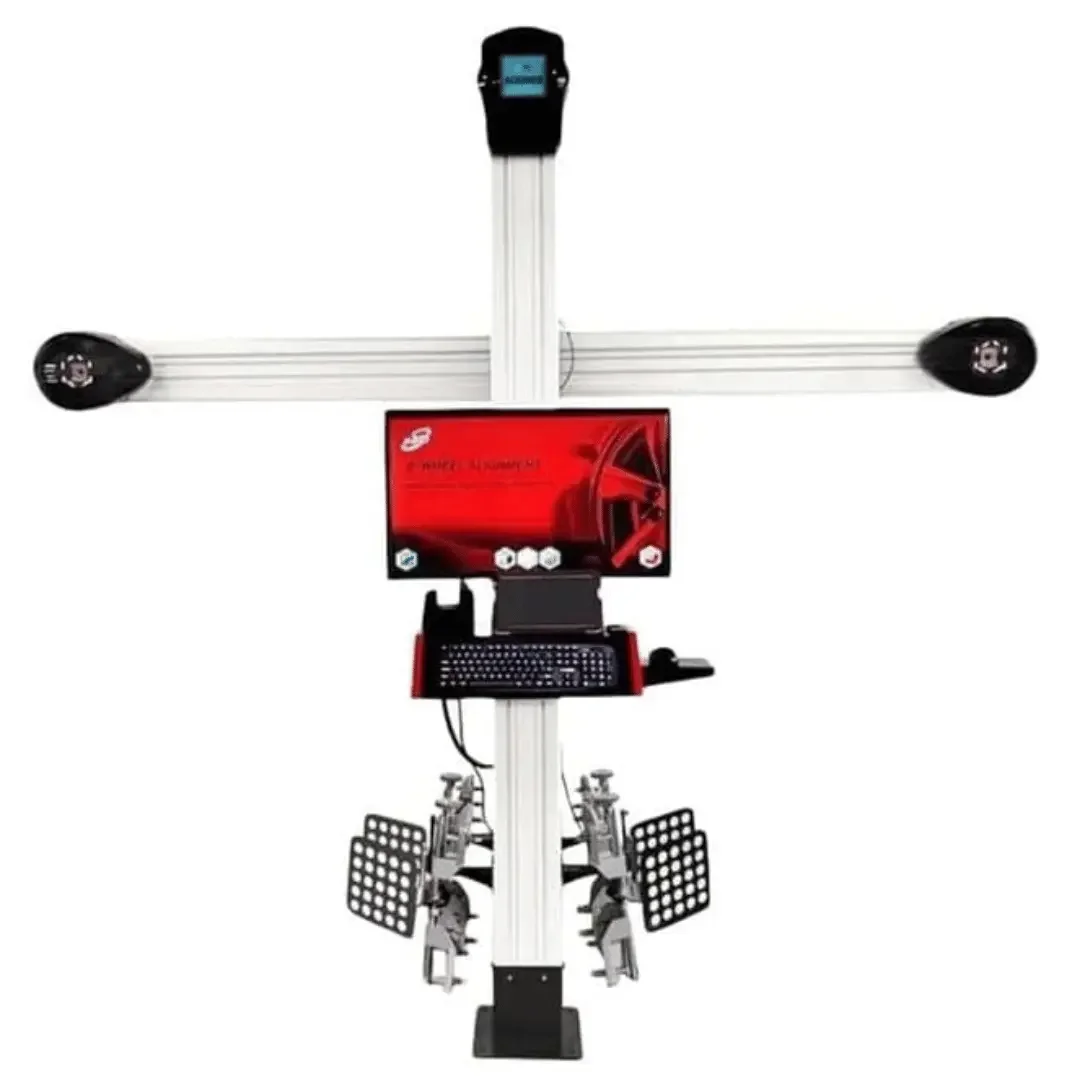

Katool KT-AV6 Wheel Alignment Machine Works on 2 Post & Scissor Lift

The Katool KT-AV6 Wheel Alignment Machine is a professional-grade 3D wheel aligner engineered for exceptional precision and versatility. Designed to work seamlessly with both 2 post lifts and scissor lifts, this system delivers accurate alignment diagnostics for a wide range of vehicles. Its advanced technology and durable construction make it an ideal choice for automotive repair shops, tire retailers, and fleet maintenance facilities that demand efficiency and reliability.

This wheel alignment machine integrates cutting-edge measurement systems to ensure accuracy at every stage. Using high-definition cameras, precision sensors, and advanced software algorithms, the KT-AV6 captures real-time alignment data. This allows technicians to perform highly accurate adjustments with confidence. The system can measure toe, camber, caster, thrust angle, and more, delivering a complete diagnostic readout for professional service.

The KT-AV6 is built for ease of use. Its intuitive interface simplifies the alignment process, enabling technicians to work quickly without sacrificing precision. The setup is straightforward, with no calibration required during installation. This plug-and-play functionality minimizes downtime and allows service bays to integrate the system immediately. Technicians benefit from clear visual guidance and step-by-step prompts during alignments, reducing errors and improving workflow.

One of the most valuable features of the KT-AV6 wheel alignment machine is its mobility. This system is designed to be portable so it can be moved easily between bays or lifts. Whether your workshop uses a fixed 2 post lift or a scissor lift, the KT-AV6 can adapt without complicated reconfiguration. This flexibility is a major advantage for busy shops where space and workflow efficiency are critical. The system’s wheels and compact frame make moving and storage simple, and its durable construction ensures it can withstand daily heavy use.

The KT-AV6 includes advanced reporting capabilities, giving technicians and shop owners detailed records of every alignment job. Reports include before-and-after measurements, alignment adjustments, and other diagnostic data. These reports can be saved digitally or printed for customers, providing valuable transparency and building trust. Customers appreciate receiving a clear record of service that verifies the quality of the work performed.

With its compatibility across different lift types, the KT-AV6 expands the range of possible applications for a shop. It can be used on passenger vehicles, light trucks, and SUVs with equal efficiency. This makes it a versatile investment that can handle a broad spectrum of automotive alignment tasks. For fleet maintenance operations, the KT-AV6 delivers faster turnaround times, keeping vehicles on the road longer. For repair shops and tire service centers, it enhances service quality and customer satisfaction.

Contact us for more information.

Katool KT-AV6 Wheel Alignment Machine Features

Mobile 3D Wheel Aligner for Lift Application
Unlimited memory for vehicle specifications
No calibration during installation

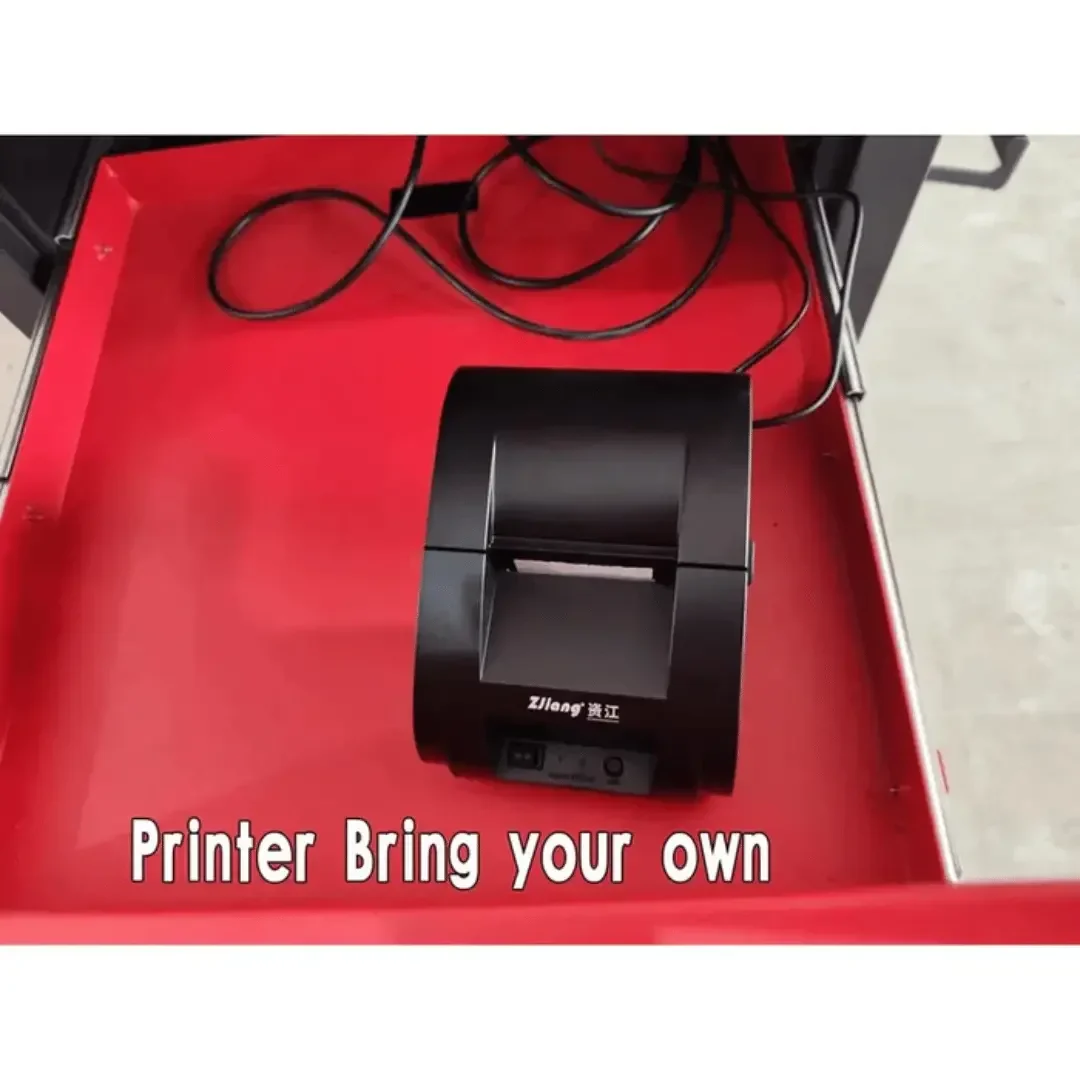

Includes tablet and a 30inch display screen, mouse and keypad, and a printer
Complementary wifi device and USB drive
Uses Android and IOS systems for the software, minimizes the need for software and system maintenance
Synchronous Display on Smart Phone and Pad
The client can read the alignment operation on the smart device during the service
During rear wheel adjustment, the engineer can check data changes on a smartphone easily
The post moves by a remote, making it easy to track the height of the car
No cabinet design, compact and keeps the workspace tidy
Free database upgrades yearly
The database keeps up with the most recent car models from all US, European and Asian brands.

Product Specifications

Power Supply	100-240V,50/60 HZ,1 Ph
Working Temperature	41F104 F(+5?+40?)
Cameras (Total)	2
Tire Diameter	9 27/32-31 1/2 in(250-800 mm)
Wheelbase	62 63/64 -82 43/64 in(1.6-2.1m)
Track Width	70 55/64-177 11/64 in(1.8 -4.5 m)
Warranty	1-Year Limited
Product Weight	440.92 Ibs(200 kg)
Shipping Weight	529.11 Ibs(240 kg)
Shipping Dimensions	26x35.43x36.22 in(660x900x920mm) 110.24x15.75x15.75in(2800x400x400mm)

Wheel Alignment Machine Installation – Quick Guide

Prepare Site: Use a level surface with clear space for vehicle approach and lift.
Unpack & Inspect: Check for all parts, damage, and review the manual.
Set Up Lift/Targets: Install turn plates/slip plates; align with machine specs.
Mount Sensors/Cameras: Secure towers or cameras at correct height and distance.
Connect Power: Plug into correct voltage and properly ground.
Calibrate System: Follow manufacturer steps for sensor and camera calibration.
Software Setup: Install/update software, input shop info, and test system.

Pick Up and Delivery

Call, text, or chat with us if you have questions. 866-774-7743

Alignment Lifts

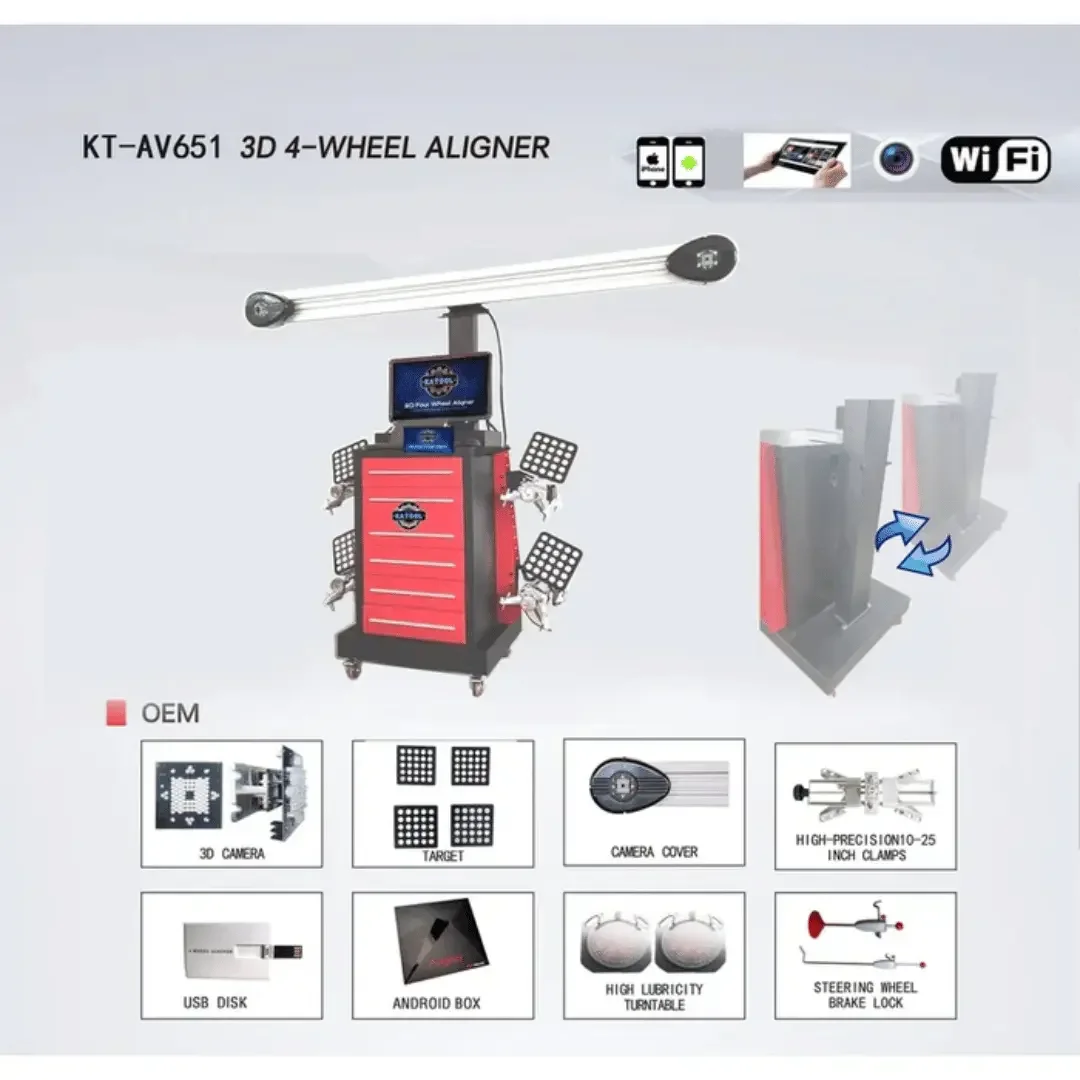

Katool KT-AV651 Wheel Alignment Machine
