Product Description

Ideal UF-2500EH-X-BLK Electric / Hydraulic UTV Frame Lift

Introducing the Ideal UF-2500EH-X-BLK Electric/Hydraulic UTV Frame Lift—a versatile and powerful lifting solution designed to accommodate everything from the largest UTVs to the smallest ATVs. This state-of-the-art frame lift is engineered for maximum efficiency and space-saving operation, making it an essential tool for any professional or enthusiast working with a variety of off-road vehicles.

High Capacity and Optimal Performance

With a robust 2,500 lbs. capacity, the UF-2500EH-X-BLK is built to handle heavy-duty tasks with ease. Whether you're lifting a large UTV or a smaller ATV, this lift offers the strength and reliability needed to get the job done safely and efficiently. The lift platform measures 24″W x 88.9″L, providing ample space for a wide range of vehicle sizes, while the 43″ rise height (up to 49″ with rubber lift pads) ensures easy access to the undercarriage for maintenance and repairs.

Compact Design with Maximum Workspace

The ‘wheels free’ design of the UF-2500EH-X-BLK provides a small lift footprint, giving you additional workspace around the vehicle. This makes it ideal for workshops with limited space, allowing you to maximize your working area without sacrificing lifting capacity or stability.

Smooth and Rapid Operation

Powered by a 110V Electric/Hydraulic lift system, this frame lift offers smooth and rapid lifting and lowering operations. With a lifting time of just 25 seconds and a lowering time to match, you can quickly and efficiently position vehicles at the desired height, making your work faster and more productive.

Fully Featured Control Panel

The UF-2500EH-X-BLK comes with a fully operational control panel featuring an electro-magnetic lock release. This user-friendly panel allows you to easily control the lift, ensuring precise and safe operation at all times. The lift also offers three locking positions at heights of 28", 36.5", and the maximum height, providing flexibility for various tasks.

Durable Construction and Stability

Constructed with a heavy-duty diamond plate platform and load-bearing hinged platform extensions, the UF-2500EH-X-BLK is designed for long-lasting durability and stability. The rubber contact lift pads (4.75” x 6.5” each) ensure secure lifting without damaging the vehicle's frame, while the portable or mounted pedestal stand provides convenience and flexibility in your workspace setup.

Additional Features and Options

The lift includes a power unit cover with a storage bin for added convenience, keeping your tools and accessories close at hand. For those looking to expand the lift’s capabilities, optional wheel stand kits are available, offering even greater versatility.

The Ideal UF-2500EH-X-BLK Electric/Hydraulic UTV Frame Lift is the perfect choice for those who need a reliable, space-efficient, and high-capacity lifting solution. Whether you're a professional mechanic or a dedicated off-road enthusiast, this lift provides the strength, durability, and convenience needed to tackle any job with confidence.

Product Features

Frame Lift with exclusive ‘wheels free’ design for the largest UTVs to smallest ATVs.
Provides SMALL LIFT FOOTPRINT for ADDITIONAL WORKSPACE
2,500 lbs capacity
43″ RISE HEIGHT (49” w/ rubber lift pads)
24″W X 88.9″L PLATFORM SIZE
4.75” MIN. HEIGHT
Smooth & rapid 110V Electric / Hydraulic lift operation
Fully operational control panel W/ ELECTRO-MAGNETIC LOCK RELEASE
Three locking positions
Heavy-Duty Diamond Plate Platform & extension Construction
LOAD BEARING ‘HINGED’ PLATFORM EXTENSIONS
PORTABLE OR MOUNTED PEDESTAL stand
Power unit cover w/ storage bin
RUBBER CONTACT LIFT PADS – 4.75” X 6.5” (4EA)
Options: WHLSTDKIT-UF2500EH-X

Specifications

Product Model	UF-2500EH-X-BLK
Capacity	2,500 lbs. (1,134 kg)
Min. Height	4.75" (121 mm)
Max Lifting Heights	43" to 49.25” w/ Adaptor
Locking Heights	28” - 36.5”
Overall Length w/ Ramps	67" to 89"
Overall Width	24.8"
Platform Size (L x W)	67” x 24"
Pedestal Control Stand Size (L x W x H)	15” x 11” x 39”
Pedestal / Platform Max Distance	96”
Lifting Time	25 Seconds
Lowering Time	25 Seconds
Power	110V, 60Hz, 1 PH-18A
Ship Weight	740 lbs.

Pick Up and Delivery

Our Pick Up locations for Valor, Tuxedo, iDeal are located in Temecula, California - Orlando, Florida - Norcross, Georgia - Elwood, Indiana - St. Cloud, Minnesota - Reidsville, NC - Pottsville, Pennsylvania - Alvarado, Texas - West Valley City, Utah.

Call, text, or chat with us if you have questions. 866-774-7743

Downloads

Brochure

Manual

Warranty

Auto Body

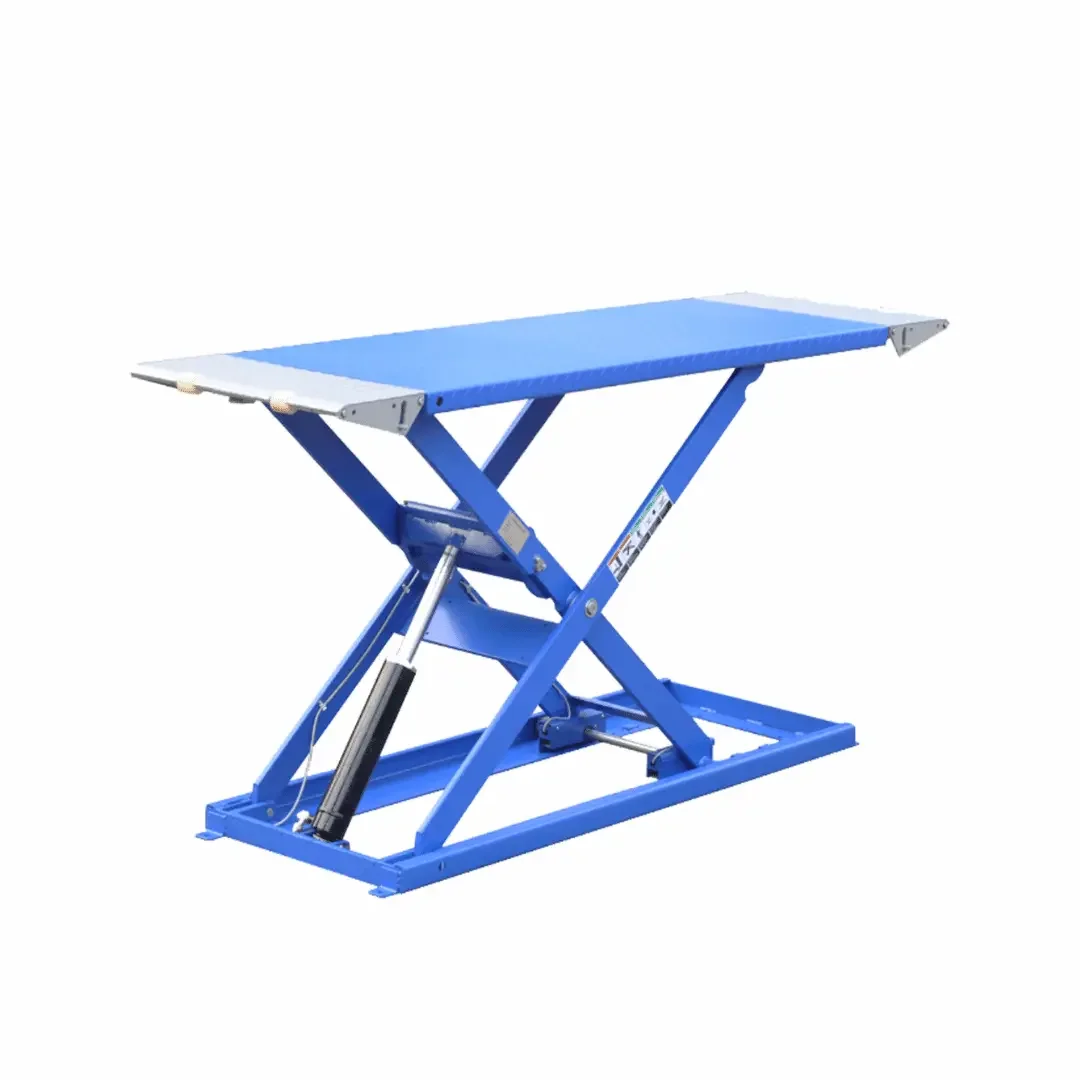

iDEAL UF-2500EH-X Electric / Hydraulic UTV Frame Lift

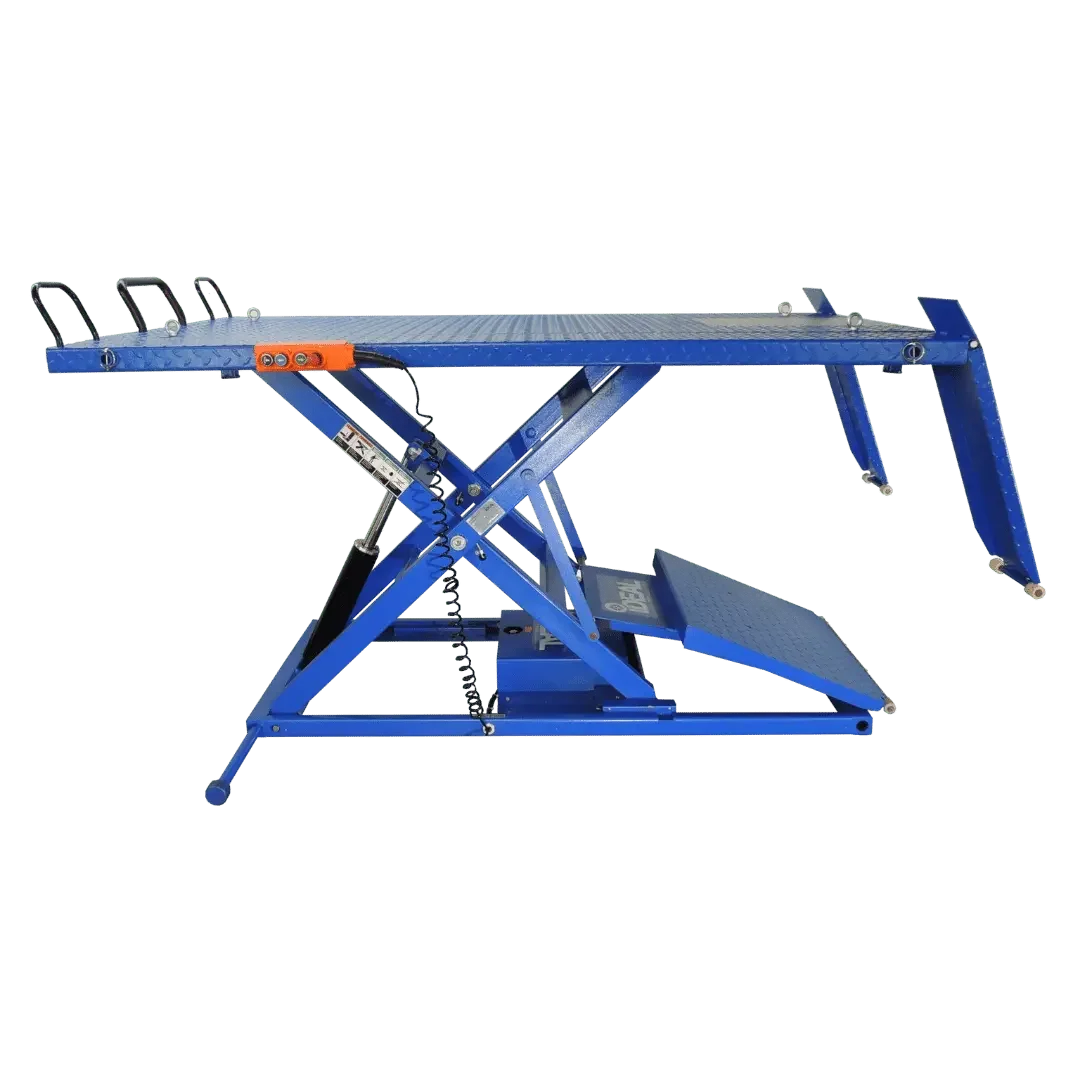

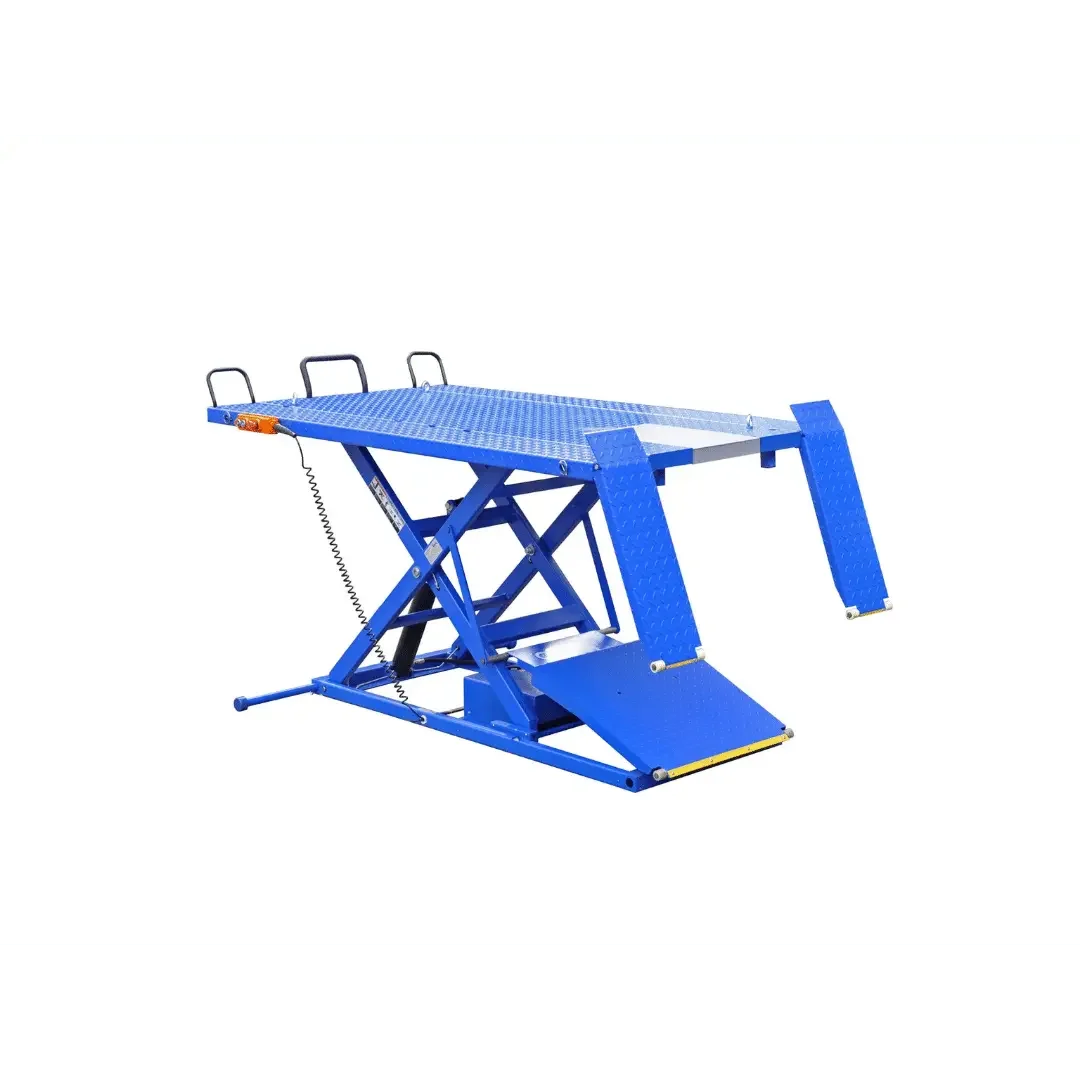

iDEAL A-2200IEH-XR Electric / Hydraulic ATV Lift Bench
